Description
Brand and model: Purelux RC360 Spot, 80W
Operating voltage: 10–30 V (fits both 12V and 24V systems)
Power: 80 W
Current consumption: 4.75A @ 12V / 2.37A @ 24V
Rotation: Unlimited 360° horizontally, approx. 180° vertically (maximum shown in image)
Remote control range: 30–40 m
Remote control battery: V23GA, 12 V (not included)
Cable: High-quality rubber cable (260 cm) with cigarette socket connector
Light performance: Up to 6720 lumens
Cone of light: Combination
Color temperature: 6000 K
Lifespan: 30,000 hours (compared to ~400 h for 55W H3 halogen)
Protection class: IP65
Certifications: CE, RoHS, R10
Functions: SOS mode
Size (max): Width 236 mm, Height 244 mm, Depth 200 mm
Weight: 3.7 kg
Working temperature: -35°C to +70°C
Warranty: 24 months
Note: The fixture may become hot during long continuous use

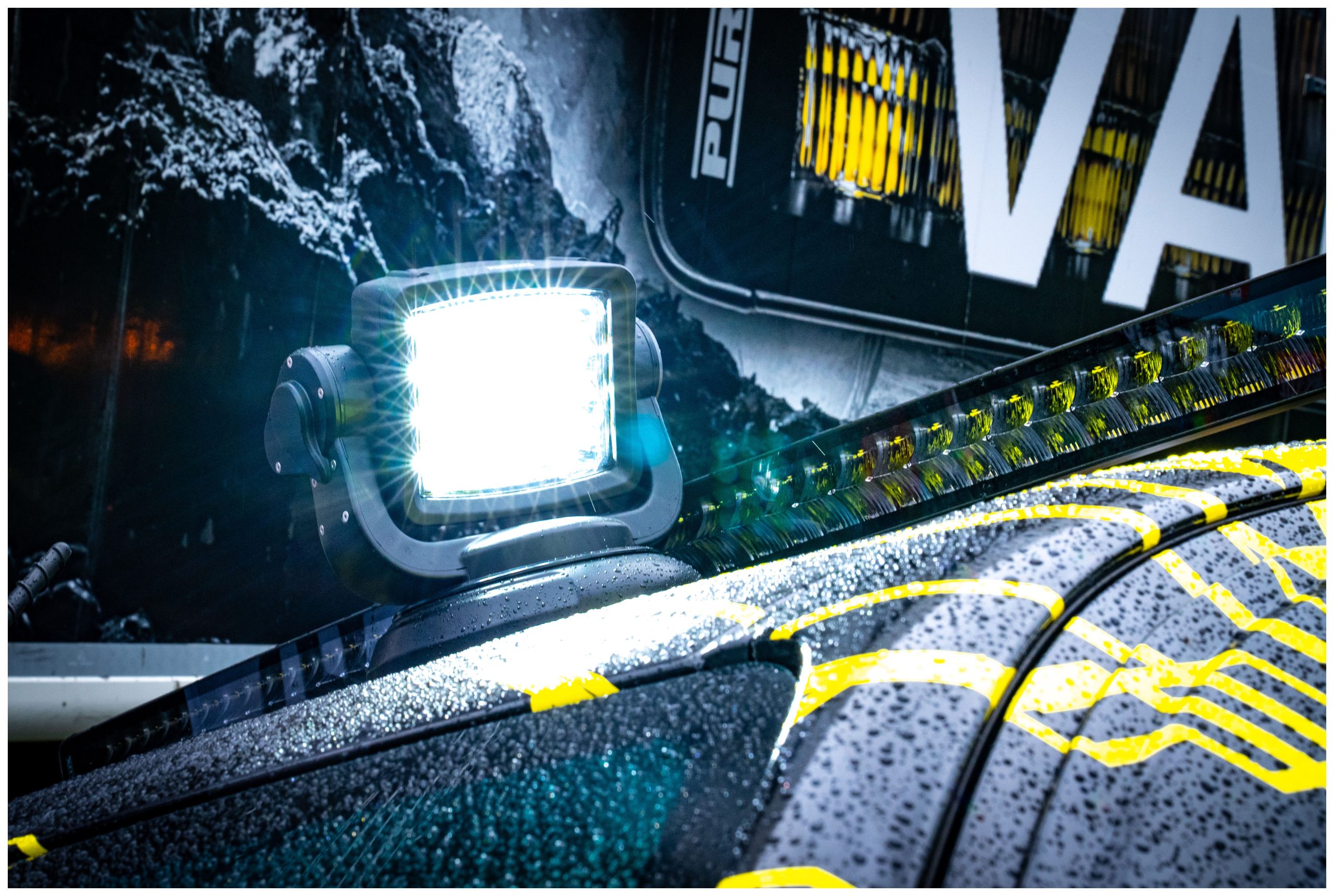

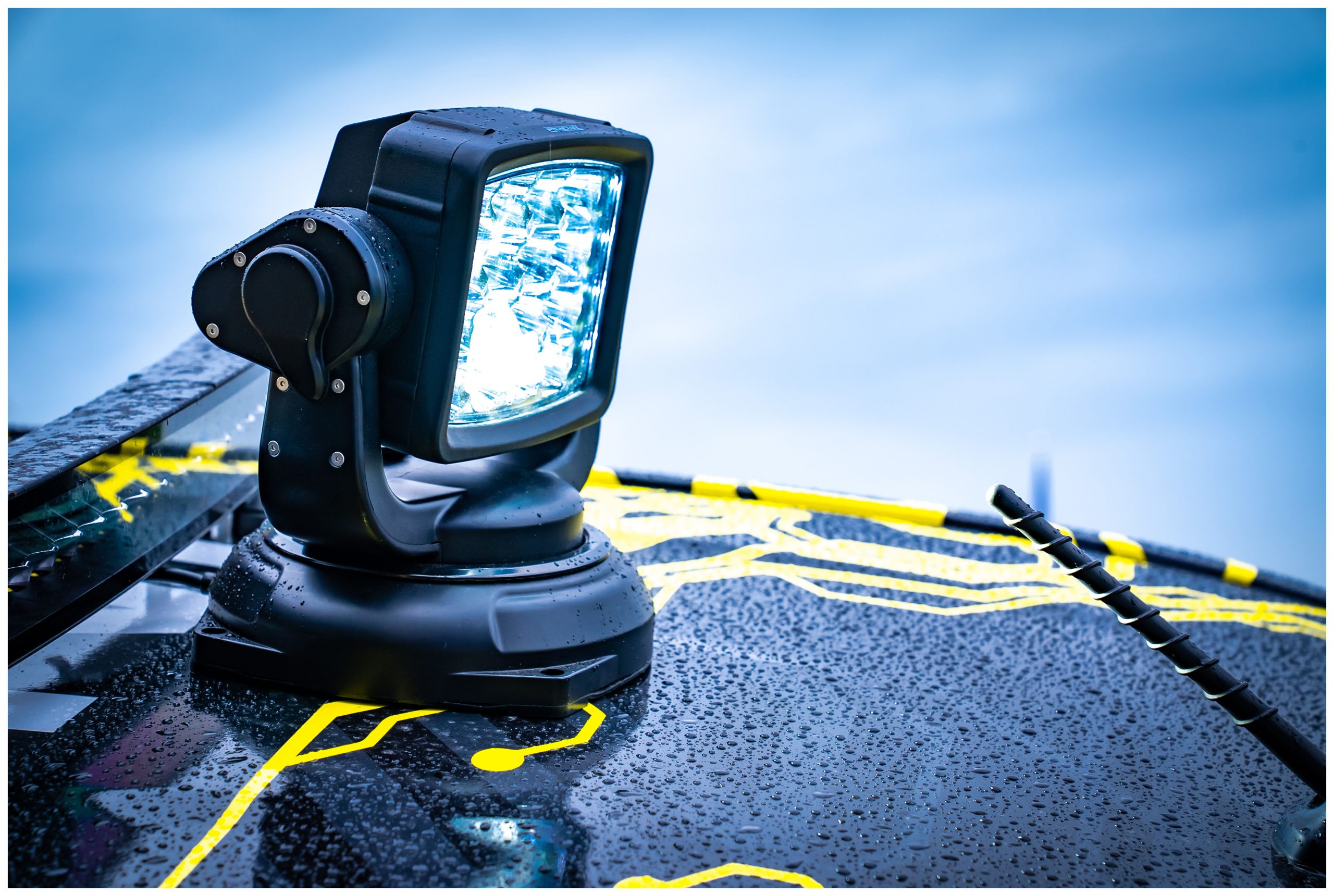

Note: The image shows a Flood version – Spot version has a transparent lens
Quick guide to controlling multiple lights with your own remote control
- Only turn on one lamp at a time when programming remotes
- Disconnect remote: Turn on the lamp. Press the power button on the remote. Hold the F button until the light blinks 3 times and turns off. Repeat for each lamp and remote.
- Connect remote: Turn on the lamp. Hold the power button until the light blinks 3 times and turns on. Repeat for each lamp and remote.
- Turn on each light and test remote functionality. Repeat steps if needed.
