Description
Technical information:

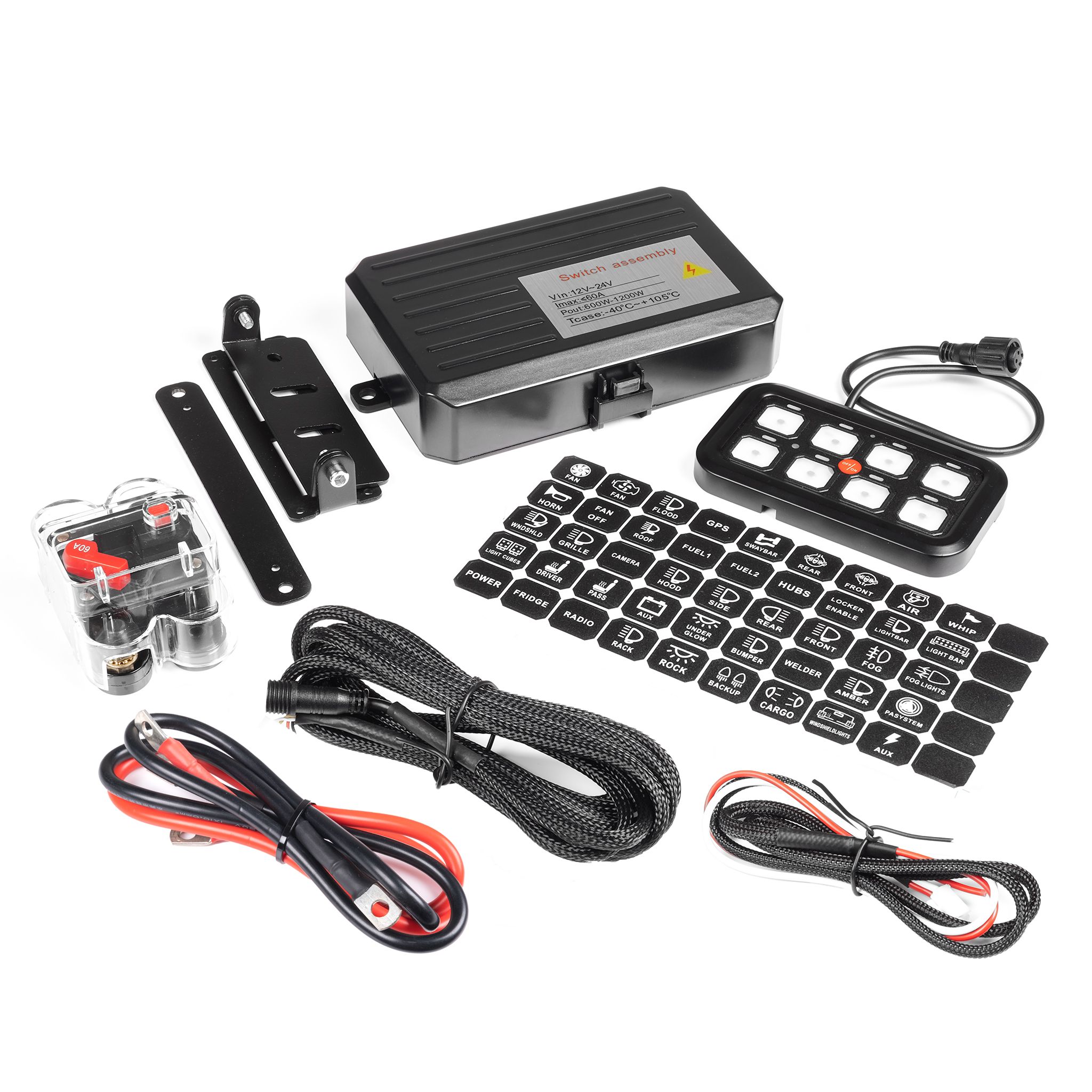

• What: Switch panel Purelux Multi-Switch Dashboard Controller, 10–30V
• Purpose: Operating up to 8 electrical devices from the same switch panel
• Applications: Enables operation of additional lights, side/rear work lights, beacon panel etc.
• Operating voltage: 10–30 V
• Power rating: 600W @ 12V, 1200W @ 24V
• Maximum current: 60 A
• Includes 50 marking stickers
• Switch panel size: 116 × 66 × 14 mm (Width × Height × Depth)
• IP rating: IP65
• Operating temperature: -40°C to +105°C
• Approvals: CE marked
• Feature: Memory function
• Warranty: 12 months
Connection instructions:
• Power: Connect the red main power cable from the vehicle’s battery or other constant power source to the RCD (residual current device), and then from the RCD to the fuse box at the red-labeled terminal. Ground the black cable between the vehicle frame and the black-labeled terminal in the fuse box.
• Panel connection: Use the included 4-pin cable to connect the switch panel to the plug marked in the fuse box.
• Excitation current: If you want the connected devices to operate **only when the ignition is on**, connect the excitation cable to a switched circuit (e.g. cigarette lighter or ignition switch). If you want **continuous operation**, connect it directly to the battery’s positive pole.
• Note: The red LED indicator next to each fuse shows if the fuse has blown.
